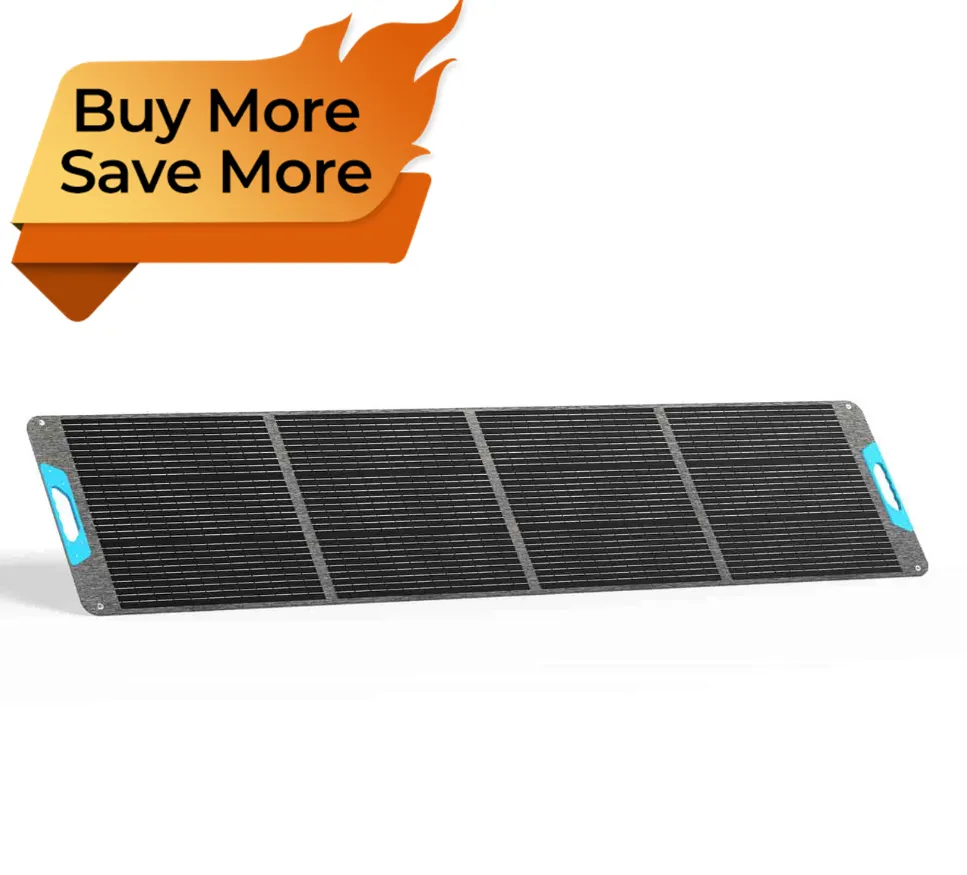

Renogy 200W Portable Solar Panel
The Renogy 200W Portable Solar Panel is a versatile and efficient solution for off-grid power needs, ideal for camping, RV trips, and outdoor activities. Its lightweight design and high-efficiency monocrystalline cells ensure reliable energy generation wherever sunlight is available.
High Efficiency and Reliable Performance
Equipped with Grade A monocrystalline solar cells, this panel achieves up to 21% efficiency, delivering up to 500Wh per day under optimal sunlight conditions. This ensures consistent power supply for your devices and batteries during outdoor adventures.
Portable and User-Friendly Design
Weighing approximately 17.6 lbs (8 kg) and featuring a foldable design, the panel is easy to transport and set up. Integrated kickstands allow for optimal sun exposure, and four mounting holes provide secure attachment options for various surfaces.
Durable Construction for Outdoor Use

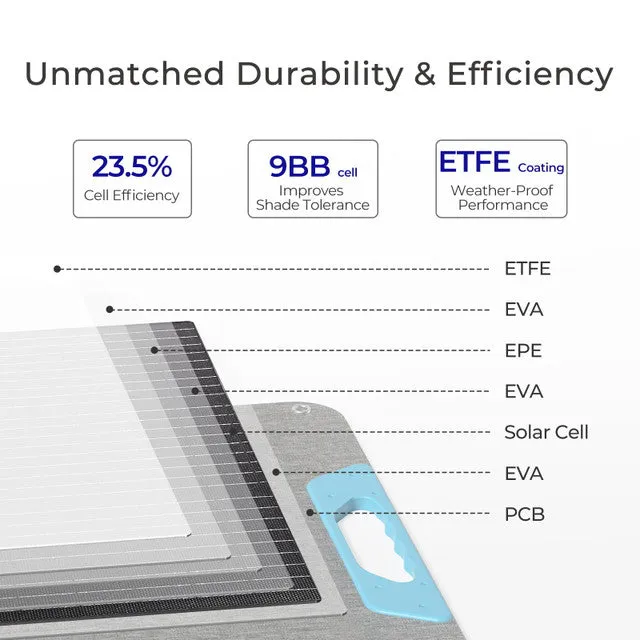

Constructed with ETFE material, the panel offers enhanced durability and resistance to environmental factors. Its IP65-rated junction box ensures protection against dust and low-pressure water jets, making it suitable for diverse outdoor conditions.
Versatile Connectivity Options

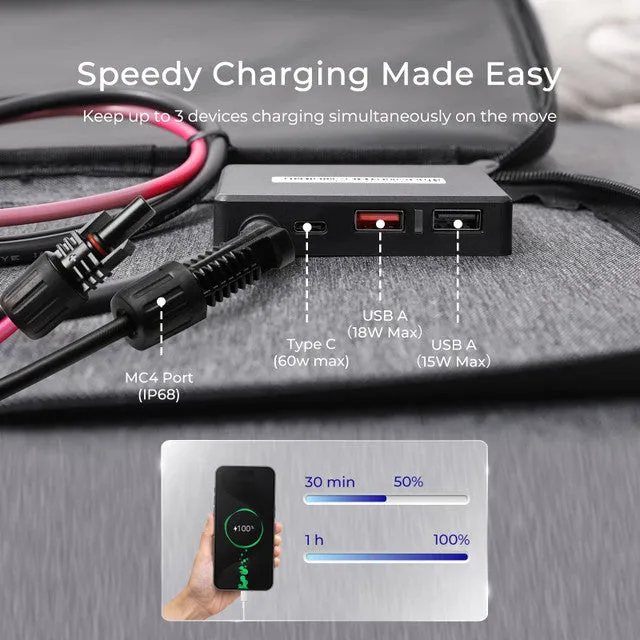

The panel includes multiple output ports: one industry-standard solar connector, one USB-C port, and two USB-A ports, allowing simultaneous charging of various devices. This versatility makes it compatible with a wide range of portable power stations and batteries.
Easy Integration with Power Systems
Designed for seamless integration, the panel can charge most batteries (with a charge controller) and power stations. Ensure the open-circuit voltage does not exceed the maximum DC input voltage of your device for safe operation.
Specifications
-
Maximum Power (STC): 200W
-
Open-Circuit Voltage (Voc): 23.40V
-
Short-Circuit Current (Isc): 10.50A
-
Optimum Operating Voltage (Vmp): 20.16V
-
Optimum Operating Current (Imp): 9.92A
-
Cell Efficiency: >23.5%
-
Operating Temperature: 14°F to 149°F (-10°C to 65°C)
-

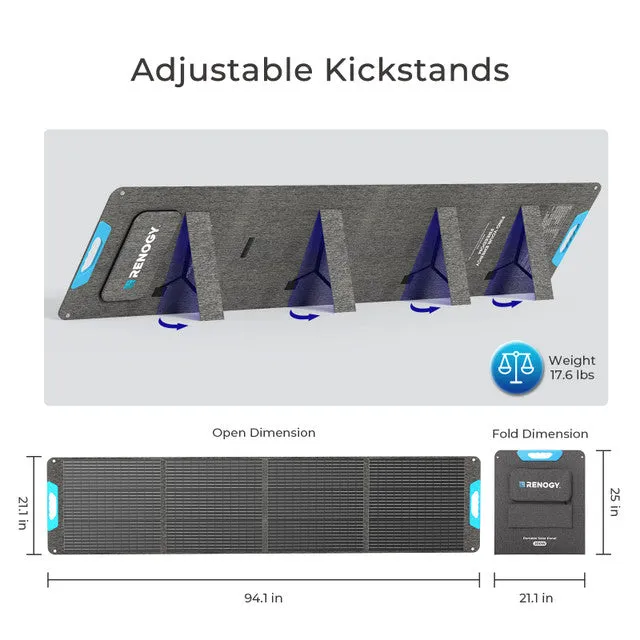

Dimensions (Folded): 25.0 x 21.1 x 2.2 in (635 x 536 x 55 mm)
-
Dimensions (Unfolded): 94.1 x 21.1 x 0.2 in (2390 x 536 x 4 mm)
-
Weight: 17.6 lbs (8.0 kg)
-
Waterproof Rating: IP65
What’s In The Box
1 x 200W EFLEX Portable Solar Panel
1 x User Manual
1 x E-Warranty Card
